Plant Equipment - AP3036, Part 9 (1st Ed) & Part 10 (2nd Ed) - Light Railway Equipment


(1st Ed) indicates that the Part/Section was in the original 1st Edition of AP3036.  (2nd Ed) indicates that the Part/Section was in the original 2nd Edition of AP3036, whilst the addition of AL? indicates which Amendment List, introduced this Part/Section following the original release of AP3036 (2nd Edition)

·   Section 1 (2nd Ed) - Diesel Locomotives

Ruston and Hornsby Diesel Loco, 33/40 hp, 2 ft Gauge

Ruston and Hornsby Diesel Loco, 33/40 hp, 2 ft Gauge

Description
  1. The locomotive is used to haul light railway wagons where the track is permanently installed or is only moved infrequently, as for example, in quarry work.  It may also however, be used in airfield construction and similar classes of work when the ground is too soft for lorries and dumpers although in this instance the track will require more attention to keep it in order and will have to be moved as the work progresses

  2. The locomotive is powered b a Ruston 33/40 Ii p diesel engine

This entry has been amended up to AL14, 2nd Edition

Engine/Transmission Engine - Ruston & Hornsby, Type 3VROL, 3 cylinder, water-cooled, Diesel engine:  Capacity 87.5 cu in/cylinder:  BHP - 40:  Governed speed - 550 t 1,200 rpm.

Gearbox - 3 forward speeds, 3 reverse speeds, constant mesh

Data

Weight - 10,080 lb.

Overall dimensions: -

  • Length - 11 ft. 3½ in.

  • Width - 3 ft. 5½ in.

  • Height - 5 ft. 2 in.

Fuel consumption - 3/8 gallon/hour

Hauling capacity - see table below



Hauling capacity

Tons gross weight behind loco based on adhesion of 500 lb per ton and rolling resistance of 22 lb per ton

Normal gear Speed (mph) Speed range (mph) Tractive effort (in lb) Maximum draw-bar pull (lb) Maximum tons hauled
Level 1 in 200 1 in 100 1 in 80 1 in 50 1 in 30 1 in 25 1 in 20
Bottom 3¼ 1-7/8 to 3¾ 2,250 2,150 98 65 46 40 29 19 16 12¼
Middle 5 2-7/8 to 5¾ 1,960 1,860 85 55 40 35 25 16 13 10
Top 7¾ 4½ to 9 1,260 1,260 53 33 24 21 14 8½ 6¾ 5
The loads given in the table are the maximum which can be hauled with the engine in good condition at normal temperature and altitude and upon straight tracks



Ruston and Hornsby Diesel Loco, 16/20 hp, 2 ft Gauge

No photographs currently available

Description

The general description applies to all Ruston and Hornsby models.

The locomotive is powered by a Ruston diesel engine (of two cylinders in the smaller size and three cylinders in the larger - see above), mounted on a steel frame which is fitted with four steel rail wheels  The wheelbase is short to facilitate work on acute curves.  The driver's seat is fitted sideways to give vision in both directions.

Three forward speeds and three reverse speeds are provided.

The chief use of the locomotive is to haul wagons on light railway track of 2 ft. gauge, which is used to a great extent on quarry work where it is more or less permanently in one position and moved infrequently.  For general work on airfield construction, if the ground is too soft for lorries and dumpers, the locomotive can be used for hauling wagons containing excavated material to a tip.

The disadvantage of using railway track on this type of work is that the track requires constant attention to keep it in good order and, as the tip grows, the track has to be moved.

Sanding gear is provided on the locomotive to assist adhesion in wet weather.

Operation
Data

·   Section 2 (2nd Ed to AL18) - Rolling Stock and Track/Section 3 (2nd Ed - AL18) - Light Railway Track

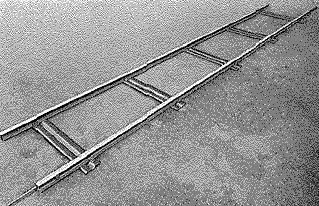

Monks Hall Light Railway Track

Description
  1. The track is made in lengths of 18 or 15 ft., joined together with the fishplates and fishplate bolts.  The steel sleepers are bolted underneath the track at intervals of 3 ft., but are placed closer together on curves. Turnouts left-hand and right-hand can be used for enabling tracks to branch off.  Turntables are used so that right-angle turns can be negotiated.

  2. A jim crow is provided for bending straight rails into curves.  A punching bear is also provided for making holes for fishplate bolts in lengths of rails that have been shortened by cutting with the rail saw.

This entry is amended to AL18, 2nd Edition.

Data

Type of rail - Flat-bottom, bull-headed section, 20 lb to the lineal yard.

Gauge - 2 ft

Weight (one mile of track, complete with sleepers, fishplates, clips and all nuts and bolts) - 41¾ tons.

For one mile of track in 15 ft. lengths the following are required :-

  • 704 pairs fishplates.

  • 7,040 clip bolts.

  • 7,040 clips.

  • 2,816 fishplate bolts and nuts.

  • 1,760 sleepers.

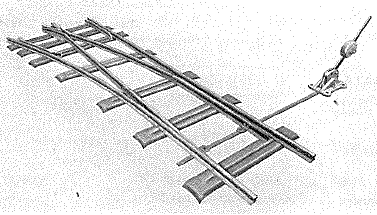

Hudson LH and RH Turnouts, 2 ft Gauge

Description
  1. Left- and right-hand turnouts are used in conjunction with the light railway track, shown above, to enable wagons to be moved from one track to another.

  2. When ordering turnouts it is advisable to order additional pairs of fishplates and bolts, unless similar spare fittings have been ordered with the main track, as each turnout usually needs six extra pairs for connecting up the track.

This item of equipment appears to have been added to the 2nd Edition by the issue of AL18.

Data

Gauge - 2 ft

Weight of rails - 20 lb. per lineal yard

Approximate radius - 37 ft

Approximate angle of crossing - 1 in 3

Weight of turnout - 575 ft

Overall dimensions: -

  • Length - 15 ft. 0 in.

  • Width - 6 ft. 3 in.

  • Height - 4 in.

·   Section 3 (2nd Ed - AL18)/Section 2 (2nd Ed from AL18) - Rolling Stock

Hudson 1 cu yd, Type A and 2 cu yd, Type B double-sided Tipping Wagon, 2 ft gauge.

Hudson 1 cu yd, Type A and 2 cu yd, Type B double-sided Tipping Wagon, 2 ft gauge.

Description
  1. These double-sided tipping wagons are used in airfield construction, and similar classes of work, for transporting excavated earth, sand, etc.
  2. The wagon consists of a body supported on a cradle, which is mounted on a steel frame provided with four flanged steel rail wheels. The wagons may be connected together by link couplings.

This item of equipment appears to have been added to the 2nd Edition by the issue of AL18.

Data

Model - Type A (1 Cu. yd.) and Type B (2 cu. yd.)

The Type A wagon is the maker's lightest model and is suitable for carrying soft materials loaded by hand it is not intended to be used for hard materials or broken stones; and the wagons are not designed to withstand rough shunting by locomotives.

The Type B wagon has stronger body plates and may be used for hard materials such as broken stones.

Gauge - 2ft.

Running gear - 4 toughened cast steel flanged wheels, 12 in. dia. for I cu. yd. wagons and 15 in. dia. for 2cu. yd. wagons; pressed fast on to mild steel axles; outside journals.

Axleboxes - Hudson 'FARO" type with ball bearings and rust-less metallic grease seals.

Springs - Rubber cushion pads are supplied with the axleboxes.

Couplings - Provision is made for link couplings at the front and rear of each wagon.

Body catch - The body catch can be operated from either side of the wagon and ensures discharge away from the operator. Automatically locks when the body returns to the upright position.

Weights

  • Average weight of 1 cu yd Type A wagon - 835 lb.

  • Average weight of 2 cu yd Type B wagon - 2,120 lb.

Overall dimensions (Type A): -

  • Length - 6 ft. 1½ in.

  • Width - 4 ft. 11½ in.

  • Height (from rails) - 3 ft. 9¼ in.

  • Thickness of body plate - 1/8 in

Overall dimensions (Type B): -

  • Length - 7 ft. 10 in.

  • Width - 5 ft. 4 in.

  • Height (from rails) - 4 ft. 10 in.

  • Thickness of body plate - ¼ in.

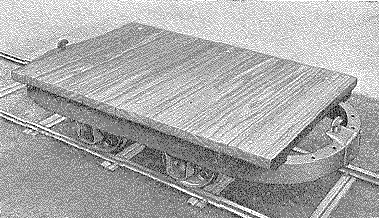

Hudson Platform Wagon

Description
  1. This type of wagon is used for carrying small machinery, machinery parts, timber, rails, sleepers, etc.

  2. The wagon consists of a steel frame surmounted by a flat timber platform.  The frame is provided with four flanged steel rail wheels, and is fitted with link couplings for connecting the Wagons together.

This item of equipment appears to have been added to the 2nd Edition by the issue of AL18.
Data

Model - Standard type light flat car

Gauge - 2ft.

Running gear - 4 toughened cast steel flanged wheels, 12 in. dia. for I cu. yd. wagons and 15 in. dia. for 2cu. yd. wagons; pressed fast on to mild steel axles; outside journals.

Axleboxes - Hudson 'FARO" type with ball bearings and rust-less metallic grease seals.

Springs - Rubber cushion pads are supplied with the axleboxes.

Couplings - Provision is made for link couplings at the front and rear of each wagon.

Maximum safe load - 2 tons

Weight - 500 lb.

Overall dimensions: -

  • Length - 6 ft. 1½ in.

  • Length of platform - 5 ft 0 in

  • Width - 3 ft. 4 in.

  • Height (from rail) - 1 ft. 4 in.

  • Thickness of platform - 2 in

The dates of the various Amendment Lists are shown below: -

Amendment List

Date of issue

Amendment List

Date of issue

Amendment List

Date of issue

Amendment List

Date of issue

1

 Mar 1951

26

Nov 1951

51

Aug 1952

76

 Mar 1956

2

May 1951

27

Nov 1951

52

Nov 1952

77

May 1956

3

Jul 1951

28

Nov 1951

53

Mar 1953

78

May 1956

4

Jul 1951

29

Nov 1951

54

Mar 1953

79

Jun 1956

5

Aug 1951

30

Nov 1951

55

Mar 1953

80

 Jul 1956

6

Sep 1951

31

Dec 1951

56

Apr 1953

81

Aug 1956

7

Sep 1951

32

Dec 1951

57

Apr 1953

82

Aug 1956

8

Sep 1951

33

Dec 1951

58

Jun 1953

83

Sep 1956

9

Sep 1951

34

Dec 1951

59

Jun 1953

84

Dec 1956

10

Sep 1951

35

Dec 1951

60

Jul 1953

85

Apr 1957

11

Sep 1951

36

Dec 1951

61

Sep 1953

86

Jul 1957

12

Sep 1951

37

Dec 1951

62

Sep 1953

87

Jul 1957

13

Sep 1951

38

Dec 1951

63

Feb 1954

88

Oct 1957

14

Sep 1951

39

Dec 1951

64

Mar 1954

89

May 1958

15

Sep 1951

40

Dec 1951

65

Aug 1954

90

May 1958

16

 Sep 1951

41

Dec 1951

66

Sep 1954

91

Aug 1958

17

 Sep 1951

42

Jan 1952

67

Oct 1954

92

Sep 1958

18

Oct 1951

43

Jan 1952

68

Oct 1954

93

Dec 1958

19

Oct 1951

44

Feb 1952

69

Dec 1954

94

Feb 1959

20

Oct 1951

45

Mar 1952

70

?

95

Mar 1959

21

Nov 1951

46

Apr 1952

71

?

96

Feb 1959

22

Nov 1951

47

May 1952

72

Sep 1955

97

Apr 1959

23

Nov 1951

48

Jun 1952

73

Nov 1955

98

Jul 1959

24

Nov 1951

49

Jun 1952

74

Nov 1955

99

Nov 1960

25

 Nov 1951

50

Jul 1952

75

Feb 1956
