2782E - Trucks

Mechanical Transport AP2782E Book 1, Section 9 - Trucks, Van, General Service and Cargo

Item	Vehicle
1	Karrier, 2-ton, 4x2, Mk 5 Bantam chassis equipped as Ground Equipment Servicing truck
2	Truck, Van, 3-ton, 4x2, Ground Equipment Servicing, Karrier Bantam, FAH 398
3	Truck, Van, Test, Bomb release, 2-ton, 4x2, Karrier Bantam Mk 5
4	Truck, Van, 3-ton, 4x2, Forward Supply, Karrier Bantam, FAH 398
5	Truck, Van, 2-ton, 4x2, Forward Supply, Karrier Bantam Mk 5
6	Truck, General Service, with Power Take Off, ½-ton, 4x4, Rover 2
7	Truck, General Service, ½-ton, 4x4, Rover 3
8	Truck, General Service, ½-ton, 4x4, Rover, Diesel engine Truck, Utility, ½-ton, 4x4, Rover, Diesel engine
9	Truck, General Service, ½-ton, 4x4, Rover Mk 6
10	Truck, General Service, 1-ton, 4x4, Austin
11	Truck, General Service, 1-ton, 4x2, Bedford, A2C
12	Truck, General Service, 5-ton, 4x2, Bedford, SLC
13	Truck, General Service, ¼-ton, , 4x2, Airportable, BMC Mini
14	Truck, Cargo, 3-ton, 4x2, Austin, type CL
15	Truck, Cargo, 3-ton, 4x2, Fordson Thames
16	Truck, Cargo, 3-ton, 4x2, Karrier Bantam FAH398
17	Bedford, 3-ton, 4x4, Type RL chassis fitted with Truck/Cargo body
18	Truck, Cargo, with split cab, 3-ton, 4x4, Dropside, Bedford RL
19	Truck, Cargo, with dropsides, 5-ton, 4x4, AEC
20	Truck, Cargo, 10-ton, 6x4, Leyland 19H/1
21	Truck, Cargo, 10-ton, 6x4, Leyland 19H/1
22	Truck, Cargo, 2-ton, 4x2, Karrier Bantam Mk 3
22A	Truck, Cargo, 2-ton, 4x2, Karrier Bantam Mk 5
23	Truck, Cargo, Elevating Body, 7-ton, 4x2, Aircraft Loading, 10-ft lift, Bedford SLC3
24	Truck, 4x4, MAN HX60
25	Truck, Cargo, 1½-ton, 4x2, Hard Top, Bedford JIC2
26	Truck, Cargo, 13-ton, 4x2, Dropside, Bedford EDLOBCO

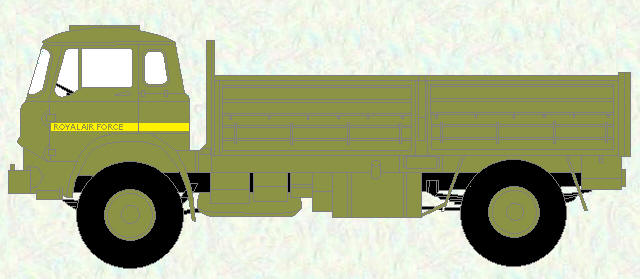

27	Truck, Cargo, 4-ton, 4x4, Bedford MKP2BMO
28	Truck, Cargo, 4-ton, 4x4, with winch, Bedford MKP2WMO
29	Truck, Cargo, 5-tonne, 4x2, with tail lift, Bedford (EJN3BCO)

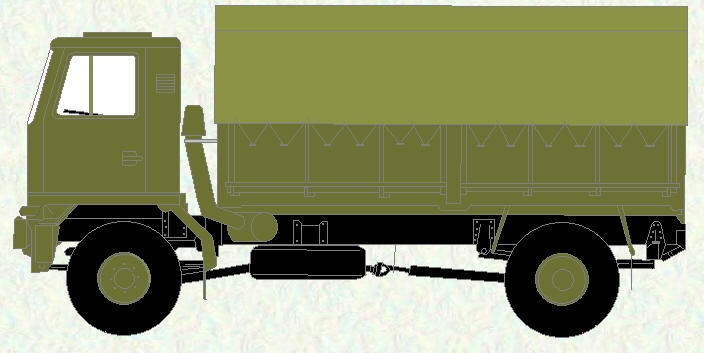

30	Truck, Cargo, 8-ton, 4x4, MMLC, Bedford TM
31	Truck, Cargo, Armoured Half Cab, 3-ton, 4x4, Bedford RL
32	Truck, Cargo, CL, 10-ton, 6x4, Dropside, AEC TG6 RB
33	Truck, Cargo, CL, 3-ton, 4x2, Bedford AHGDBCO
34	Truck, Cargo, CL, 5-ton, 4x2, Dropside, 2-speed axle, Bedford EJQ5ECO (KFLC5)
35	Truck, Cargo, CL, 8-ton, 4x2, Dropside, Bedford ERL3CCO
36	Truck, Cargo, Elevating Body, 6-ton, 4x2, Aircraft Loading, 100-ft lift, Bedford EJQ 1 BCO
37	Truck, Cargo, Elevating Body, 6-ton, 4x2, Bedford EPR1CCO
38	Truck, Cargo, w/2-ton crane, 3-ton, 4x2, Bedford EJQ 1DCO (KFSC5)

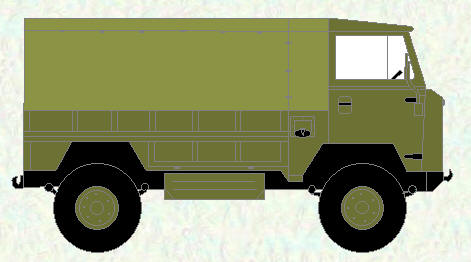

39	Truck, GS, 1-ton, 12 V, with winch, Rover 101
40	Truck, GS, DAF
41	Truck, Leyland DAF T224
42	Truck, Utility, ¼-ton, 4x4, Rover 88 inch, Series 11ACP (also Rover 6)
43	Truck, Utility, ½-ton, 4x4, Anti-spark, Rover Series 3, Diesel
44	Truck, Utility, ½-ton, 4x4, Rover 1

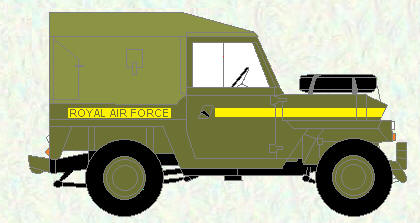

45	Truck, Utility, ½-ton, 4x4, Rover Series 3

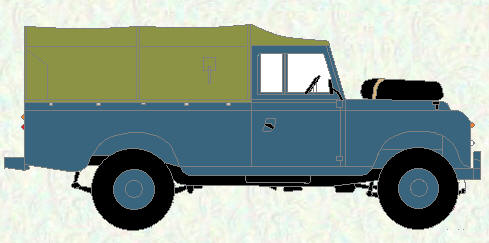

46	Truck, Utility, ¾-ton, 4x4, Rover 109-inch, Series 11A
47	Truck, Utility, FFR, ¾-ton, 4x4, 24 V, Rover Series 3
48	Truck, Utility, FFR, ¾-ton, 4x4, Rover 11L

Karrier, 2-ton, 4x2, Mk 5 Bantam chassis equipped as Ground Equipment Servicing truck Crown Copyright^©
RAF Ref No	16A/2353 (Vehicle); 16A/2189 (Chassis):
Engine	Karrier, 4-cyl, petrol, liquid cooled, 53 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 17ft 2in (internal - 10ft 0in); Width - 6ft 9in (internal - 6ft 0in); Height - 9ft 6in (internal - 6ft 6in, loading height - 2 ft 10¾in); WB - 8ft 2in; G/C - 5in; TC
Weights	Unladen - 2 tons 10 cwt; Laden - :
Body
Tyres
Notes	For the transporting of personnel and tools for servicing ground equipment at aircraft dispersal points.

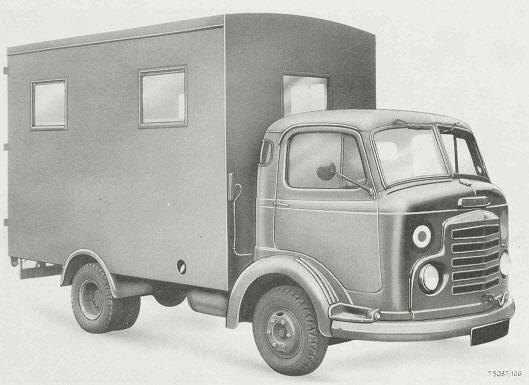

Truck, Van, 3-ton, 4x2, Ground Equipment Servicing, Karrier Bantam, FAH 398 Crown Copyright^©
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 5.23m (body internal - 3.25m); Width -2.04m (body internal - 1.82m) ; Height - 2.99m (body internal - 1.9m); WB -2.48m ; G/C - 120mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Van, Test, Bomb release, 2-ton, 4x2, Karrier Bantam Mk 5 Crown Copyright^©
RAF Ref No	16A/2160 (Vehicle); 16A/2189 (Chassis):
Engine	Karrier, 4-cyl, petrol, liquid cooled, 53 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 17ft 2in; Width - 7ft 1in; Height - 9ft 3½in; WB - 8ft 2in; G/C - 5in; TC - :
Weights	Unladen - 2 tons 12 cwt; Laden - :
Body
Tyres	For functionally testing conventional bomb release gear circuit on 'V' class aircraft.

Truck, Van, 3-ton, 4x2, Forward Supply, Karrier Bantam, FAH 398 Crown Copyright^©
RAF Ref No	16A/2732 (Vehicle); 16A/2733 (Chassis):
Engine	Karrier, 4-cyl vertical, ohv, petrol, liquid cooled, 53.5 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 17ft 1in/.5.20m (body - 10ft 8in/3.25m); Width - 6ft 7½in/2.01m (body - 6ft 0in/1.82m); Height - 10ft 1in/3.07m (body - 6ft 8in/2.03m); WB - 8ft 2in/2.48m; G/C - ; TC - :
Weights	Unladen - 3 tons 3 cwt; Laden - :
Body
Tyres
Notes	For transportation of forward supply items to user sections.

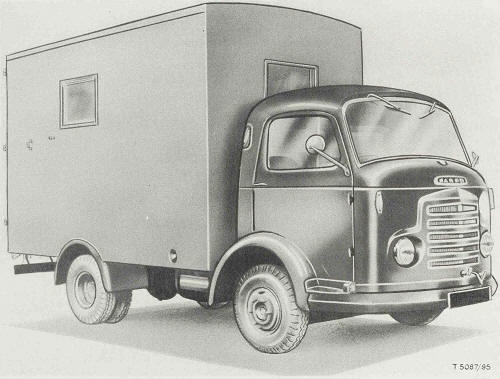

Truck, Van, 2-ton, 4x2, Forward Supply, Karrier Bantam Mk 5 Crown Copyright^©
RAF Ref No	16A/2508 (Vehicle); 16A/2189 (Chassis):
Engine	Karrier, 4-cyl, petrol, liquid cooled, 53 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 17ft 3in (internal - 10ft 8in); Width -6ft 6in (internal - 6ft 0in) ; Height - 9ft 7in (internal - 6ft 8in, loading height - 2 ft 10¾in); WB - 8ft 2in; G/C - 5in; TC - :
Weights	Unladen - 2 tons 10 cwt; Laden - :
Body
Tyres
Notes	For transportation of forward supply items to user sections.

Truck, General Service, with Power Take Off, ½-ton, 4x4, Rover 2 Crown Copyright^©
RAF Ref No	16A/1404
Engine	Rover, petrol, 4-cyl, liquid cooled, 2.0 litre - 52 bhp @ 4,000 rpm.
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 11ft 4in; Width - 5ft 2in; Height - 6ft 3in (hood up), 4ft 5in (hood down, windscreen folded); WB - 6ft 8in; G/C - 8½in; TC
Weights	Unladen - 18 cwt; Laden - :
Body
Tyres
Notes	General purpose passenger and load-carrying open truck with good cross-country performance. E1-9

Truck, General Service, ½-ton, 4x4, Rover 3 Crown Copyright^©
RAF Ref No	16A/1843 (1953 Modal); 16A/2118 (1955 Model)
Engine	Rover, petrol, 4-cyl, liquid cooled, 2.0 litre - 52 bhp @ 4,000 rpm.
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 12ft 2in; Width - 5ft 2in; Height - 6ft 5in (hood up), 4ft 9in (hood down, windscreen folded); WB - 7ft 4in; G/C - 8in; TC
Weights	Unladen - 18 cwt; Laden - :
Body
Tyres
Notes	General purpose passenger and load-carrying open truck with excellent cross-country performance.

Truck, General Service, ½-ton, 4x4, Rover, Diesel engine Truck, Utility, ½-ton, 4x4, Rover, Diesel engine Crown Copyright^©
RAF Ref No	16A/2452 (2.0 litre diesel)
Engine	Rover, petrol, 4-cyl, liquid cooled, 2.0 litre - 51 bhp @ 3,500 rpm.
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 11ft 10½in; Width - 5ft 4in; Height - 6ft 4-7/8in (loading height - 2ft 3in); WB -7ft 4in ; G/C - 8in; TC
Weights	Unladen - 1 ton 7 cwt; Laden - :
Body
Tyres
Notes	General purpose passenger and load-carrying truck.

Truck, General Service, ½-ton, 4x4, Rover Mk 6 Crown Copyright^©
RAF Ref No	16A/2479 (RHD); 16A/2496 (LHD)
Engine	Rover, petrol, 4-cyl, liquid cooled, 2¼ litre - 77 bhp @ 2,250 rpm.
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 11ft 10½in; Width - 5ft 4in; Height - 6ft 4-7/8in (loading height - 2ft 3in); WB - 7ft 4in; G/C - 8in; TC
Weights	Unladen - 1 ton 5 cwt; Laden - :
Body
Tyres
Notes	General purpose passenger and load-carrying truck.

Truck, General Service, 1-ton, 4x4, Austin Crown Copyright^©
RAF Ref No	16A/1641 (Vehicle); 16A/1549 (Chassis); 16A/1642 (Body)
Engine	Austin, 6-cyl, petrol, liquid cooled, 90 bhp @ 3,000 rpm.
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 17ft 3in (internal - 7ft 11in); Width - 7ft 4in (internal - 6ft 0in); Height - 8ft 10in (internal - 5ft 1in); WB - 11ft 6in; G/C -12in ; TC - :
Weights	Unladen - 2 tons 18 cwt; Laden - :
Body
Tyres
Notes	Normal control, high loading chassis with cargo body and detachable tilt. The chassis is a standard commercial model modified to meet Service requirements, including the provision of front wheel drive and larger wheel equipment. The vehicle has a limited cross-country performance and is capable of towing a trailed load of 2 tons on good surfaces without performance loss.

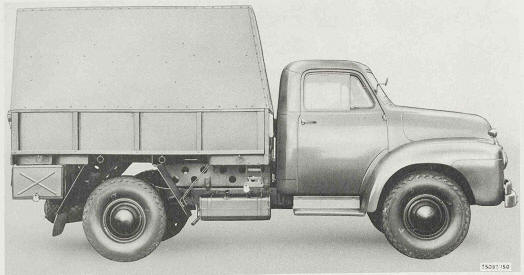

Truck, General Service, 1-ton, 4x2, Bedford, A2C Crown Copyright^©
RAF Ref No	16A/2196
Engine	Bedford, petrol, 6-cyl, liquid cooled, 68.5 bhp @ 2,800 rpm.
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 16ft 9½in (internal - 8ft 2½in); Width - 6ft 11in (internal - 6ft 6in); Height - 8ft 10in (internal - 5ft 2in); WB - 9ft 11in; G/C -7½in ; TC - :
Weights	Unladen - 2 tons 8 cwt; Laden - :
Body
Tyres
Notes	Normal control, high loading chassis with general purpose cargo body and light alloy 'hard-top'. The chassis is a standard commercial model modified to meet Service requirements.

Truck, General Service, 5-ton, 4x2, Bedford, SLC Crown Copyright^©
RAF Ref No	16A/1688 (Vehicle); 16A/1689 (Chassis):
Engine	Bedford, petrol, 6-cyl, liquid cooled, 94 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 20ft 4in (internal - 14ft 1in); Width - 7ft 10in (internal - 7ft 4in); Height - 10ft 1in (internal - 5ft 9in); WB - 13ft 0in; G/C - 11in; TC - :
Weights	Unladen - 2 tons 18 cwt; Laden - :
Body
Tyres
Notes	Forward control, high loading chassis with cargo body and detachable tilt.

Truck, General Service, ¼-ton, , 4x2, Airportable, BMC Mini Crown Copyright^©
RAF Ref No	16A/2602
Engine	Austin 4-cyl, petrol, liquid cooled, 37 bhp @ 5,500 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 10ft 10in (internal - 3ft 9¾in); Width - 4ft 7½in (internal - 3ft 7¼in); Height - 4ft 5½in (internal - 3ft ¾in); WB - 7ft 0-5/32in; G/C - 6-3/8in; TC
Weights	Unladen - 11 cwt; Laden - :
Body
Tyres
Notes	Lightweight, airportable vehicle to carry the driver and three passengers, or a lesser number of men and equivalent weight of freight

Truck, Cargo, 3-ton, 4x2, Austin, type CL Crown Copyright^©
RAF Ref No	16A/1504 (Vehicle); 16A/1515 (Chassis); 16A/1516 (Body):
Engine	Austin, petrol, 6-cyl, liquid cooled, 68 bhp @ 2,700 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length -20ft 4in (internal - 14ft 1in) ; Width - 7ft 10in (internal - 7ft 4in); Height - 10ft 1in (internal - 5ft 9in); WB - 13ft 0in; G/C - 11in; TC - :
Weights	Unladen - 2 tons 18 cwt; Laden - :
Body
Tyres
Notes	Semi-forward control, high loading chassis with cargo body and detachable canvas tilt.

Truck, Cargo, 3-ton, 4x2, Fordson Thames Crown Copyright^©
RAF Ref No	16A/1506 (Vehicle); 16A/1517 (Chassis); 16A/1636 (Body):
Engine	Ford V-8 commercial, petrol, liquid cooled, 85 bhp @ 3,500 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 21ft 11in (internal - 12ft 10in); Width - 7ft 8in (internal - 7ft 0in); Height -10ft 1in (internal - 6ft 1in) ; WB - 13ft 1in; G/C - 9in; TC - :
Weights	Unladen - 3 tons 4 cwt; Laden - :
Body
Tyres
Notes	Semi-forward control, high loading chassis with cargo body and detachable canvas tilt

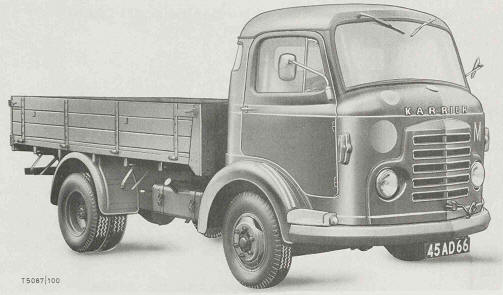

Truck, Cargo, 3-ton, 4x2, Karrier Bantam FAH398 Crown Copyright^©
RAF Ref No	16A/2729 (Vehicle); 16A/2733 (Chassis):
Engine	Karrier, 4-cyl, petrol, liquid cooled, 53.5 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 16ft 9in (body - 10ft 8in); Width - 6ft 7in; Height - 6ft 11in (sides and tailboard - 1ft 11in); WB - 8ft 2in/2.48m; G/C - ; TC - :
Weights	Unladen -3 tons 3 cwt ; Laden - :
Body
Tyres
Notes	For the transport of stores with provision for towing light trailers.

Bedford, 3-ton, 4x4, Type RL chassis fitted with Truck/Cargo body Crown Copyright^©
RAF Ref No	With trailer braking - 16A/1915 (Vehicle); 16A/2068 (Chassis); 16A/1932 Without trailer braking - 16A/2069 (Vehicle); 16A/1701 (Chassis); 16A/1932 (Body)
Engine	Bedford, petrol, 6-cyl, liquid cooled, 94 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 20ft 10in (internal - 14ft 1in); Width - 7ft 10in (internal - 7ft 4in); Height - 10ft 1in (with tilt), 8ft 6in (without tilt) (internal - 5ft 9in); WB - 13ft 0in; G/C - 12in; TC - :
Weights	Unladen - 3 tons 10 cwt; Laden - :
Body
Tyres
Notes	Forward control, high loading chassis with cargo body and detachable canvas tilt. The differences between the two variants of this chassis are: - 16A/1701 has no provision for trailer braking 16A/2608 is provided with both two-line air pressure and vacuum connections.

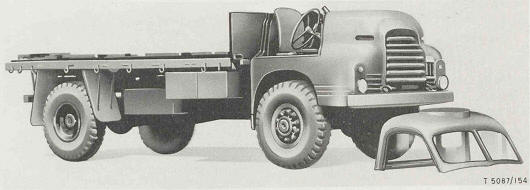

Truck, Cargo, with split cab, 3-ton, 4x4, Dropside, Bedford RL Crown Copyright^©
RAF Ref No	16A/2645 (Vehicle); 16A/2068 (Chassis):
Engine	Bedford, petrol, 6-cyl, liquid cooled, 114 bhp @ 3,200 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 20ft 10in; Width - 7ft 10in; Height - 10ft 1in; WB - 13ft 0in; G/C - 12½in; TC - :
Weights	Unladen - 4 tons 6 cwt; Laden - :
Body
Tyres
Notes	Forward control, high loading airportable chassis fitted with a split type cab and an all-steel cargo body and detachable canvas tilt cover. The cover is supported on detachable metal hoops and secured to the body sides by lashing ropes. A collapsible type steering column with an easily detached steering wheel is fitted to facilitate loading into an aircraft. With the steering wheel removed, steering control for aircraft loading is effected by a tiller bar specially provided for the purpose. A further aid for aircraft loading is provided in the form of two special clamps for the compression of the front road springs to reduce the overall height.

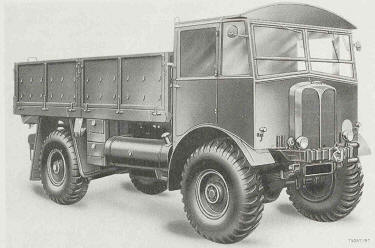

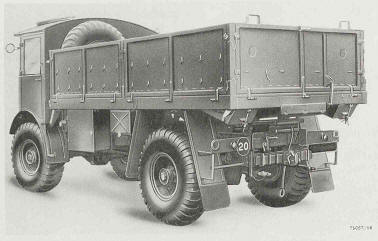

Truck, Cargo, with dropsides, 5-ton, 4x4, AEC Crown Copyright^©
RAF Ref No	16A/2124 (Vehicle); 16A/1561 (Chassis); 16A/2125 (Body)
Engine	AEC, diesel, direct injection, 6-cyl, liquid cooled, 95 bhp @1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 21ft 0in (internal - 14ft 0in); Width - 8ft 0in (internal - 7ft 0in); Height - 11ft 5in (tilt up), 9ft 8in (tilt down) (internal/tilt up - 6ft 0in), 4ft 8in (loading); WB - 12ft 7½in; G/C - 1ft 1in; TC - :
Weights	Unladen - 7 tons 2 cwt; Laden - :
Body
Tyres
Notes	Forward control, high loading chassis fitted with all-steel cargo body and detachable canvas tilt cover. The body sides and the tailboard are hinged to the body and can be readily removed, together with their supporting pillars when conversion to flat platform body is required.

Truck, Cargo, 10-ton, 6x4, Leyland 19H/1 Crown Copyright^©
RAF Ref No	16A/1303 (Vehicle); 16A/1658 (Chassis); 16A/1564 (Body):
Engine	Leyland, 6-cyl, diesel, liquid cooled, 125 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 27ft 6in (internal - 19ft 6in); Width - 8ft 3in (internal - 7ft 7in); Height - 11ft 0in (internal - 6ft 9in (tilt in high position)) (loading - 4ft 5in); WB -15ft 6in ; G/C - 1ft 1½in; TC - :
Weights	Unladen - 8 tons 19 cwt; Laden - :
Body
Tyres
Notes	Forward control, high loading chassis cargo body and detachable canvas tilt cover. The vehicle is equipped for towing both vacuum and two-line air-pressure braking trailers.

Truck, Cargo, 10-ton, 6x4, Leyland 19H/1 Crown Copyright^©
RAF Ref No	16A/1923 (Vehicle); 16A/1924 (Chassis)
Engine	Leyland, 6-cyl, diesel, liquid cooled, 125 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 27ft 8in (internal - 19ft 6in); Width - 8ft 6in (internal - 7ft 5-5/8in); Height - 9ft 11in (internal - 6ft 0in (tilt in high position)) (loading - 5ft 5¼in); WB - 15ft 6in; G/C - 1ft 1½in; TC - :
Weights	Unladen - 9 tons 19 cwt; Laden - :
Body
Tyres
Notes	Forward control, high loading chassis cargo body and detachable canvas tilt cover. The vehicle is equipped for towing two-line air-pressure braking trailers.

Truck, Cargo, 2-ton, 4x2, Karrier Bantam Mk 3 Crown Copyright^©
Engine	16A/1469 (Vehicle); 16A/1562 (Chassis); 16A/1563 (Body):
Gearbox	Karrier, 4-cyl, petrol, liquid cooled, Mk 3 - 48 bhp @ 3,000 rpm, Mk 5 - 53 bhp @ 3,000 rpm
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 16ft 10in; Width - 6ft 7in; Height -6ft 8in ; WB - 8ft 2in; G/C - 5in; TC - :
Weights	Unladen - 1 ton 17 cwt; Laden - :
Body
Tyres
Notes	Forward control low loading chassis fitted with flat platform bodies.

Truck, Cargo, 2-ton, 4x2, Karrier Bantam Mk 5 Crown Copyright^©
Engine	16A/2190 (Vehicle); 16A/2189 (Chassis); 16A/2221 (Body):
Gearbox	Karrier, 4-cyl, petrol, liquid cooled, Mk 3 - 48 bhp @ 3,000 rpm, Mk 5 - 53 bhp @ 3,000 rpm
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 16ft 10in; Width - 6ft 7in; Height - 6ft 8in; WB - 8ft 2in; G/C - 5in; TC - :
Weights	Unladen - 1 ton 17 cwt; Laden - :
Body
Tyres
Notes	Forward control low loading chassis fitted with flat platform bodies.

Truck, Cargo, Elevating Body, 7-ton, 4x2, Aircraft Loading, 10-ft lift, Bedford SLC3 Crown Copyright^©
RAF Ref No	16A/2268
Engine	Bedford, petrol, 6-cyl, ohv, liquid cooled, 110 bhp @ 3,200 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 20ft 6in/6.24m (body internal - 14ft 1in/4.28m); Width - 7ft 6in/2.28m (body internal - 7ft 2in/2.18m); Height - 15ft 4in/4.67m (body raised), 9ft 7in/2.92m (body lowered) (sideboards - 2ft 6in/660mm); WB - 13ft 0in/3.96m; G/C - 10-3/8in/250mm; TC - :
Weights	Unladen - 4 tons 16 cwt; Laden - :
Body
Tyres
Notes	For the loading and unloading of freight and/or casualties (Stretcher cases) into or from aircraft; the body is raised to the level of the aircraft freight floor by two hydraulically operated rams. The vehicle loading platform is always horizontal. Normally the vehicle is restricted to airfield use but, in an emergency, it may be operated as a normal load carrier.

Truck, 4x4, MAN HX60
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, 1½-ton, 4x2, Hard Top, Bedford JIC2
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 5.24m (body internal - 2.48m); Width - 2.08m (body internal - 1.97m); Height -2.23m (body internal - 1.57m) ; WB - 3.05m; G/C - 200mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, 13-ton, 4x2, Dropside, Bedford EDLOBCO
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 7.72m (body internal - 4.26m); Width - 2.43m (body internal - 2.36m); Height - 2.84m (body internal - 1.70m, loading - 1.06m); WB - 3.42m; G/C - 120mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, 4-ton, 4x4, Bedford MKP2BMO
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 6.63m (body - 4.28m); Width - 2.48m (body internal - 2.29m); Height - 3.40m, 1.37m (loading) (body - 1.84m or 1.52m); WB - 3.96m; G/C - 330mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, 4-ton, 4x4, with winch, Bedford MKP2WMO
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 6.63m (body - 4.28m); Width - 2.48m (body internal - 2.29m); Height - 3.40m, 1.37m (loading) (body - 1.84m or 1.52m); WB - 3.96m; G/C - 330mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, 5-tonne, 4x2, with tail lift, Bedford (EJN3BCO)
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 7.17m; Width - 2.80m; Height - 3.43m; WB - 3.84m; G/C - 250mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, 8-ton, 4x4, MMLC, Bedford TM
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 6.67m (body - 4.47m); Width - 2.46m (body - 2.32m); Height - 3.29m (body - 1.82m); WB -4.37m ; G/C - 355mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, Armoured Half Cab, 3-ton, 4x4, Bedford RL
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 6.64m (body - 4.26m); Width - 2.43m (body internal - 2.18m); Height - 3.04m, 1.29m (loading) (body - 1.67m); WB - 3.96m; G/C - 330mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, CL, 10-ton, 6x4, Dropside, AEC TG6 RB
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 9.75m (body - 7.31m); Width -2.46m (body - 2.33m) ; Height - 2.53m (loading - 1.44m); WB - 5.23m; G/C - 260mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, CL, 3-ton, 4x2, Bedford AHGDBCO
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 5.70m (load platform -3.50m); Width - 2.20m (load platform -2.10m); Height - 2.25m (load platform - 400mm); WB - 2.9m; G/C - 200mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, CL, 5-ton, 4x2, Dropside, 2-speed axle, Bedford EJQ5ECO (KFLC5)
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 7.21m; Width - 2.28m; Height - 2.87m, 1.32m (loading); WB - 4.26m; G/C - 250mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, CL, 8-ton, 4x2, Dropside, Bedford ERL3CCO
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 7.67m; Width - 2.46m; Height - 2.34m; WB - 4.24m; G/C - 250mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, Elevating Body, 6-ton, 4x2, Aircraft Loading, 100-ft lift, Bedford EJQ 1 BCO
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 6.45m (body internal - 4.26m); Width - 2.31m (body internal - 2.13m); Height - 5.48m (body raised), 3.1m (body lowered) (body internal - 1.82m, platform raised - 3.65m, platform lowered - 1.26m); WB - 3.83m; G/C - 260mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, Elevating Body, 6-ton, 4x2, Bedford EPR1CCO
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 6.47m (body internal - 4.26m); Width - 2.34m (body internal - 2.13m); Height - 5.49m (body raised), 3.09m (body lowered) (under canopy - 1.82m, platform raised - 3.58m, platform lowered - 1.22m); WB - 3.83m; G/C - 260mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Cargo, w/2-ton crane, 3-ton, 4x2, Bedford EJQ 1DCO (KFSC5)
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 7.21m (body - 4.41m); Width - 2.28m (body - 2.13m); Height - 2.88m (tailboard - 1.31m, sides and tailboard - 450mm); WB - 3.83m; G/C - 260mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes	HIAB crane fitted behind cab

Truck, GS, 1-ton, 12 V, with winch, Rover 101
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 4.30m; Width - 1.80m; Height - 2.20m; WB -2.8m ; G/C -250mm ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes	Was used by RAF Regiment Rapier squadrons.

Truck, GS, DAF
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Leyland DAF T224
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Utility, ¼-ton, 4x4, Rover 88 inch, Series 11ACP (also Rover 6)
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 3.75m (body - 1.14m); Width - 1.62m (body - 1.42m) (between wheel boxes - 910mm); Height - 1.96m (body - 1.21m); WB - 2.23m; G/C - 200mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Utility, ½-ton, 4x4, Anti-spark, Rover Series 3, Diesel
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 3.67m; Width - 1.52m; Height -1.95m ; WB - 2.23m; G/C -200mm ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes	Used in bomb dumps

Truck, Utility, ½-ton, 4x4, Rover 1
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 3.73m (body - 1.14m); Width - 1.62m (body - 1.42m) (between wheel boxes - 910mm); Height - 1.96m (body - 1.21m); WB - 2.23m; G/C - 200mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Utility, ½-ton, 4x4, Rover Series 3
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 3.67m; Width - 1.52m; Height - 1.95m; WB - 2.23m; G/C -220mm ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Utility, ¾-ton, 4x4, Rover 109-inch, Series 11A
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 4.75m; Width - 1.63m; Height - 2.06m; WB - 2.77m; G/C -250mm ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes	Can be fitted with both hard and soft tops

Truck, Utility, FFR, ¾-ton, 4x4, 24 V, Rover Series 3
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length -4.56m ; Width - 1.68m; Height - 2.03m; WB - 2.77m; G/C - 230mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Utility, FFR, ¾-ton, 4x4, Rover 11L
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 4.62m; Width - 1.68m; Height - 2.03m; WB - 2.76m; G/C - 220mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes
